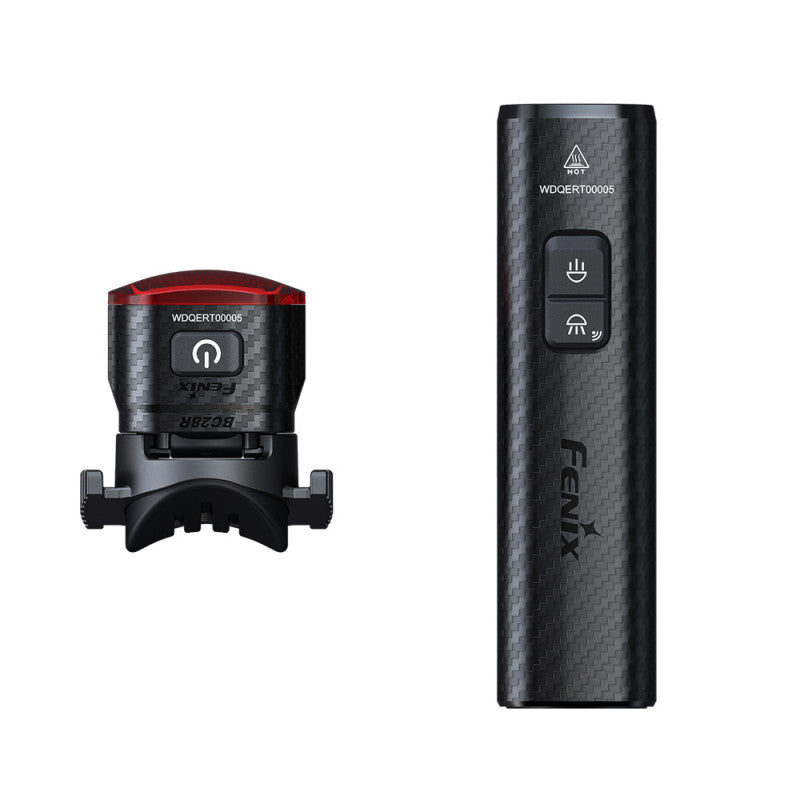

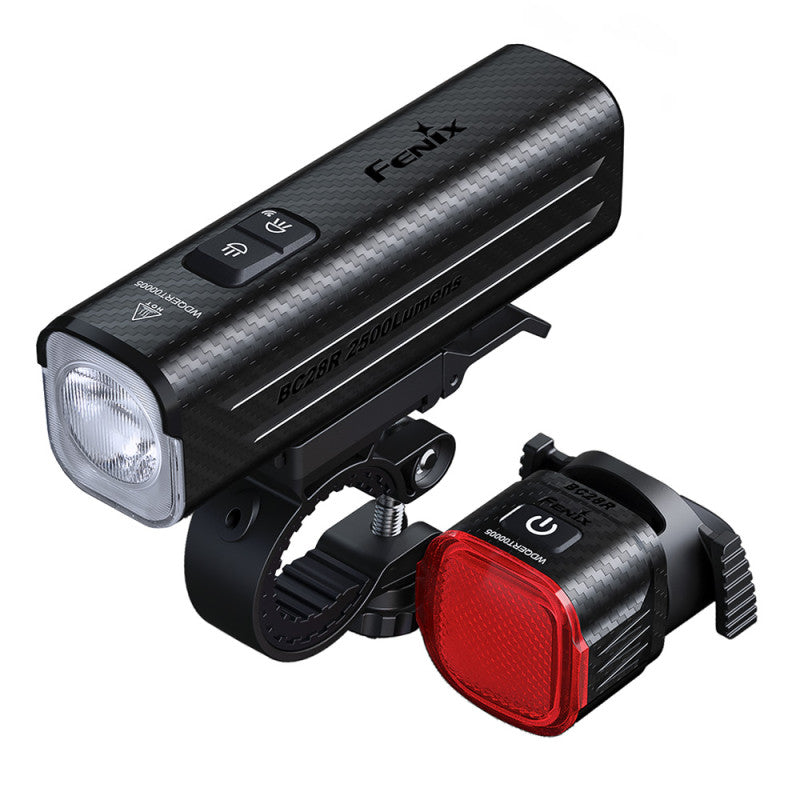

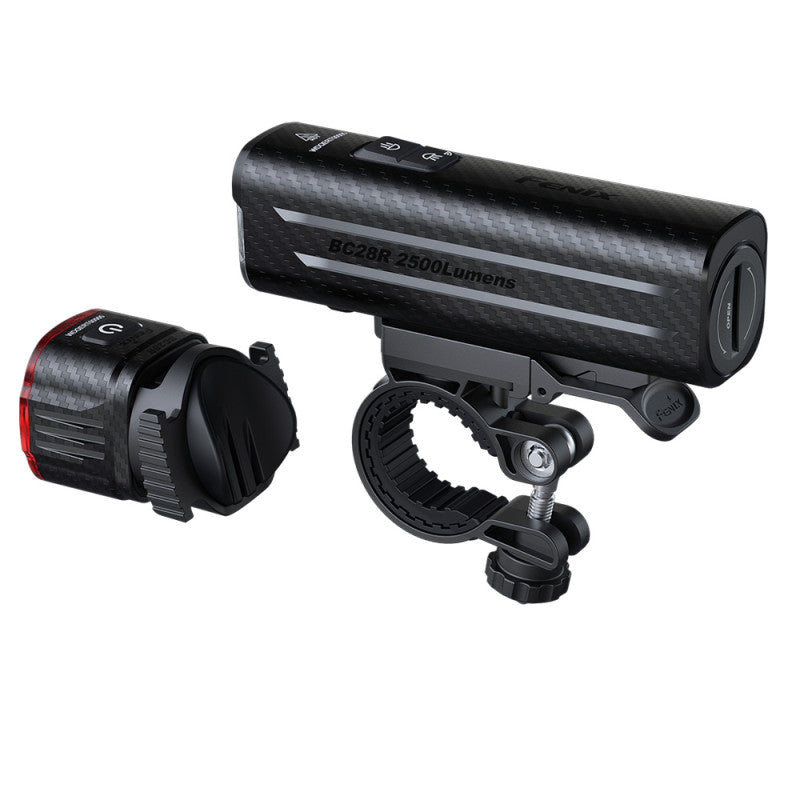

The Fenix BC28R is a smart bike light set that combines a 2500-lumen front light and a 20-lumen rear light into one integrated system. Once paired, the rear light can be controlled from a dedicated button on the front light. The front light also shows the currently selected rear light mode.

The BC28R is not defined only by its 2500-lumen maximum output. Its highly usable 1400-lumen mode provides up to seven hours of runtime, while the 600-lumen mode lasts up to 12 hours. This makes the set particularly suitable for longer road, gravel and commuting rides.

• Up to 2500 lumens from the front light

• Maximum beam distance of 180 metres

• 20-lumen rear light visible from up to 100 metres

• Wireless rear light control from the handlebars

• Wide 92-degree beam

• Anti-glare cut-off beam pattern

• Replaceable 5000mAh 21700 battery

• USB-C charging on both lights

• IP66 weather protection and 1.5-metre impact resistance

• Front and rear mounts included

Control both lights from the handlebars

The rear light has its own switch and can be used independently. When the two lights are paired, the rear light mode can be changed using the dedicated rear light button on the front unit.

The front light shows the currently selected rear light mode in real time, so there is no need to stop or reach back to the seatpost.

Wide and controlled beam pattern

A Cree XHP50D LED produces up to 2500 lumens and a maximum beam distance of 180 metres. The 92-degree beam illuminates the riding line as well as road edges, corners and obstacles approaching from the sides.

The cut-off beam pattern directs most of the light towards the road and reduces unnecessary light above the main beam. Correctly aimed, the BC28R works well for commuting, road cycling, gravel riding and mixed urban routes.

Replaceable 5000mAh battery and USB-C charging

The front light is powered by the included Fenix ARB-L21-5000 V2.0 battery. The replaceable 5000mAh 21700 Li-ion battery makes it possible to carry a charged spare battery for longer rides.

The rear light has a built-in 400mAh battery. Both lights have standard USB-C charging ports and can also be operated while charging.

One USB-C cable is included. Charging both lights simultaneously requires a second cable.

Handlebar and seatpost mounting

The included front light mount is designed for round handlebars measuring approximately 22 to 35 mm in diameter. The rear light attaches to the seatpost using the included mount and strap.

Mounting the front light underneath the handlebars or on a GoPro-compatible mount requires the separately available Fenix ALD-10 GoPro adapter. It can be combined with mounts such as the KOM Cycling CM06.

Front light output and runtime

• Turbo: 2500 lumens, 2 h 36 min, 180 m

• High: 1400 lumens, 7 h, 127 m

• Medium: 600 lumens, 12 h, 82 m

• Low: 50 lumens, 52 h, 23 m

• Daytime flash: 600/50 lumens

The stated Turbo runtime includes automatic output reduction caused by thermal regulation. The light does not maintain a constant 2500-lumen output for the entire 2 hours and 36 minutes.

Rear light output and runtime

• Low constant: 10 lumens, 6 h

• Slow flash: 10 lumens, 10 h

• Fast flash: 10 lumens, 15 h

• High constant: 20 lumens, 3 h 43 min

• High slow flash: 20 lumens, 6 h 38 min

The rear light is visible from up to 100 metres.

Technical specifications

• Front LED: Cree XHP50D

• Rear light source: red COB LED

• Maximum front output: 2500 lumens

• Maximum beam distance: 180 m

• Beam pattern: wide 92-degree cut-off beam

• Front battery: Fenix ARB-L21-5000 V2.0, 21700, 5000mAh

• Rear battery: built-in 400mAh Li-ion battery

• Charging: USB-C on both lights

• Front light dimensions: 110 x 29 x 40 mm

• Rear light dimensions: 35 x 36 x 33 mm

• Front light weight: 240 g including battery

• Rear light weight: 56 g

• Protection rating: IP66

• Impact resistance: 1.5 m

• Certifications: CE, RoHS and ANSI/PLATO FL1

• Front light warranty: 5 years

• Rear light warranty: 2 years

• Battery warranty: 1 year

• Colour: black

What's included

• Fenix BC28R front light

• Fenix BC28R rear light

• Fenix ARB-L21-5000 V2.0 5000mAh 21700 battery

• Front handlebar mount

• Rear seatpost mount

• Rear mounting strap

• USB-C charging cable

• Battery compartment key

• Spare front mounting shim

• Spare O-ring

• User manual

Frequently asked questions about the Fenix BC28R

Can the rear light be used without the front light?

Yes. The rear light has its own switch and can operate independently. Pairing the lights adds the option of controlling the rear light from the front unit.

Is the front light battery replaceable?

Yes. The front light uses the included Fenix ARB-L21-5000 V2.0 battery. A charged spare battery can be installed without waiting for the entire light to recharge.

Is the Fenix ALD-10 GoPro adapter included?

No. The standard handlebar mount is included. The ALD-10 adapter required for a GoPro-compatible mounting system is sold separately.

Can both lights be charged at the same time?

Yes. Both lights have their own USB-C charging ports. One charging cable is included, so a second USB-C cable is required to charge both simultaneously.

Does the front light maintain 2500 lumens for 2 hours and 36 minutes?

No. The ANSI runtime includes automatic output regulation. The light reduces its output according to temperature and remaining battery capacity.

What type of riding is the BC28R best suited for?

The BC28R is particularly well suited to commuting, road cycling, gravel riding and touring when a coordinated front and rear light system is preferred. For fast technical mountain biking, the BC45R offers a longer beam and separately controlled high and low beams.
